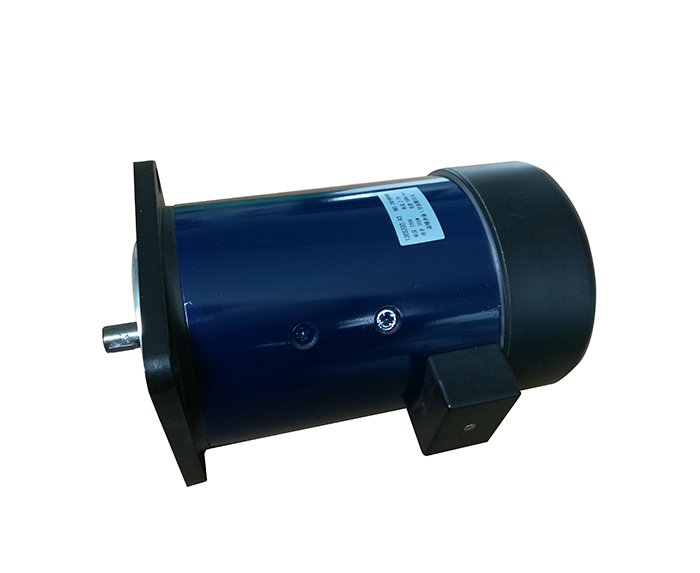

SZ系列微型直流伺服電動機廣泛應用于各種機械設備及自動化控制系統中用作執行元件，也可用作驅動元件。本系列電動機是我國自行設計的新系列產品，同老系列S系列產品相比，具有體積小、重量輕、力能指標高、零部件通用化程度強等特點。
按激磁方式本系列電動機分為：他激（并激）、串激（C）、復激（F）三種。
按使用環境條件本系列電動機分為普通型和濕熱帶型兩類.
本系列電機可與多種系列減速器相配合，滿足用戶對轉速、轉矩、安裝工位的不同要求。
使用條件
1、海拔不超過4000m；
2、環境溫度:-40℃~+55℃；
3、空氣相對濕度＜95%（25℃時）；
4、振動：振頻10~150Hz,加速度2.5g；
5、沖擊：7g（峰值）；
6、允許溫升：不超過75K（海拔為1000m時）；
7、任意安裝位置:
對濕熱帶型電動機還允許在下列條件下工作：
8、有凝露；
9、有霉菌。
|
型號 |
轉矩 |
轉速 |
功率 |
電壓 |
|
電流(A) |
|
允許順逆 |
轉動慣量 |
附注 |
|
|
|
|
|
電樞 |
激磁 |
電樞 |
激磁 |
|
|
|
|
70SZ01 |
127 |
3000 |
40.0 |
24 |
24 |
3.00 |
0.500 |
200 |
0.058 |
|
|
70SZ02 |
127 |
3000 |
40.0 |
27 |
27 |
2.60 |
0.440 |
200 |
0.058 |
|
|
70SZ03 |
127 |
3000 |
40.0 |
48 |
48 |
1.60 |
0.250 |
200 |
0.058 |
|
|
70SZ04 |
127 |
3000 |
40.0 |
110 |
110 |
0.60 |
0.110 |
200 |
0.058 |
|
|
70SZ05 |
108 |
6000 |
68.0 |
24 |
24 |
4.80 |
0.500 |
300 |
0.058 |
|
|
70SZ06 |
108 |
6000 |
68.0 |
27 |
27 |
4.40 |
0.440 |
300 |
0.058 |
|
|
70SZ06/H1 |
108 |
6000 |
68.0 |
27 |
27 |
4.40 |
0.440 |
300 |
0.058 |
|
|
70SZ07 |
108 |
6000 |
68.0 |
48 |
48 |
2.40 |
0.250 |
300 |
0.058 |
|
|
70SZ08 |
108 |
6000 |
68.0 |
110 |
110 |
1.00 |
0.110 |
300 |
0.058 |
|
|
70SZ18 |
114 |
4200 |
50.0 |
110 |
110 |
0.50 |
0.110 |
200 |
0.058 |
|
|
70SZ51 |
176 |
3000 |
55.0 |
24 |
24 |
4.00 |
0.570 |
200 |
0.070 |
|
|
70SZ52 |
176 |
3000 |
55.0 |
27 |
27 |
3.50 |
0.500 |
200 |
0.070 |
|
|
70SZ53 |
176 |
3000 |
55.0 |
48 |
48 |
1.90 |
0.310 |
200 |
0.070 |
|
|
70SZ54 |
176 |
3000 |
55.0 |
110 |
110 |
0.80 |
0.130 |
200 |
0.070 |
|
|
70SZ55 |
147 |
6000 |
92.0 |
24 |
24 |
6.00 |
0.570 |
300 |
0.070 |
|
|
70SZ56 |
147 |
6000 |
92.0 |
27 |
27 |
5.40 |
0.500 |
300 |
0.070 |
|
|
70SZ57 |
147 |
6000 |
92.0 |
48 |
48 |
3.00 |
0.310 |
300 |
0.070 |
|
|
70SZ58 |
147 |
6000 |
92.0 |
110 |
110 |
1.20 |
0.130 |
300 |
0.070 |
|
|
70SZ59 |
93 |
8000 |
88.0 |
110 |
110 |
1.32 |
0.130 |
400 |
0.070 |
|
|
70SZ61/H3 |
176 |
3000 |
55.0 |
27 |
27 |
3.50 |
0.490 |
200 |
0.070 |
|
|
70SZ63/H3 |
147 |
6000 |
92.0 |
24 |
24 |
6.00 |
0.600 |
300 |
0.070 |
|
|
70SZ64 |
127 |
3000 |
40.0 |
160 |
175 |
0.46 |
0.900 |
200 |
0.070 |
|
|
70SZ65/H5 |
176 |
4500 |
83.0 |
36 |
36 |
3.50 |
0.320 |
250 |
0.070 |
|
|
70SZ101 |
167 |
7500 |
148.0 |
110 |
110 |
1.95 |
0.120 |
400 |
|
|
|
70SZ101/H4 |
167 |
7500 |
148.0 |
110 |
110 |
1.95 |
0.120 |
400 |
|
|
|
70SZ103 |
294 |
2750 |
85.0 |
48 |
24 |
3.00 |
0.720 |
180 |
|
短時工作30min |
|
70SZ104/H1 |
392 |
10000 |
410.0 |
27 |
27 |
30.00 |
0.600 |
500 |
|
短時工作2min |
|
70SZ106 |
150 |
7000 |
110.0 |
200 |
200 |
0.75 |
0.083 |
350 |
|
|
|
型號 |
轉矩 |
轉速 |
功率 |
電壓 |
|
電流(A) |
|
允許順逆 |
轉動慣量 |
附注 |
|
|
|
|
|
電樞 |
激磁 |
電樞 |
激磁 |
|
|
|
|
90SZ01 |
323 |
1500 |
50.0 |
110 |
110 |
0.66 |
0,200 |
100 |
0.180 |
|
|
90SZ02 |
323 |
1500 |
50.0 |
220 |
220 |
0.33 |
0.110 |
100 |
0.180 |
|
|
90SZ03 |
294 |
3000 |
92.0 |
110 |
110 |
1.20 |
0.200 |
200 |
0.180 |
|
|
90SZ3/H2 |
294 |
3000 |
92.0 |
110 |
110 |
1.20 |
0.200 |
200 |
0.180 |
|
|
90SZ04 |
294 |
3000 |
92.0 |
220 |
220 |
0.60 |
0.110 |
200 |
0.180 |
|
|
90SZ05 |
294 |
3000 |
92.0 |
24 |
24 |
6.10 |
0.800 |
200 |
0.180 |
|
|
90SZ10 |
294 |
3000 |
92.0 |
180 |
200 |
0.75 |
0.110 |
200 |
0.180 |
|
|
90SZ11 |
294 |
3000 |
92.0 |
36 |
36 |
4.00 |
0.520 |
200 |
0.180 |
|
|
90SZ12/H5 |
294 |
3300 |
100.0 |
27 |
27 |
6.10 |
0.900 |
220 |
0.180 |
|
|
90SZ 13 |
323 |
1000 |
34.0 |
180 |
200 |
0.33 |
0.120 |
80 |
0.180 |
|
|
90SZ14 |
323 |
1500 |
50.0 |
180 |
200 |
0.44 |
0.120 |
100 |
0.180 |
|
|
9OSZ15 |
294 |
2250 |
69.0 |
180 |
200 |
0.56 |
0.120 |
150 |
0.180 |
|
|
90SZ16 |
323 |
1500 |
50 |
48 |
48 |
1.5 |
|
|
|
|
|
90SZ51 |
510 |
1500 |
80.0 |
110 |
110 |
1.10 |
0.230 |
100 |
0.250 |
|
|
90SZ52 |
510 |
1500 |
80.0 |
220 |
220 |
0.55 |
0.130 |
100 |
0.250 |
|
|
90SZ53 |
480 |
3000 |
150.0 |
110 |
110 |
2.00 |
0.230 |
200 |
0.250 |
|
|
90SZ54 |
480 |
3000 |
150.0 |
220 |
220 |
1.00 |
0.130 |
200 |
0.250 |
|
|
90SZ54/H8 |
480 |
3000 |
150.0 |
220 |
220 |
1.00 |
0.130 |
200 |
0.250 |
|
|
90SZ55 |
510 |
1500 |
80.0 |
24 |
24 |
5.00 |
1.000 |
100 |
0.250 |
|
|
90SZ57 |
319 |
15000 |
500.0 |
220 |
220 |
3.70 |
0.130 |
700 |
0.250 |
短時,2min |
|
90SZ58 |
319 |
15000 |
500.0 |
55 |
55 |
16.00 |
0.470 |
700 |
0.250 |
短時,2min |
|
90SZ60 |
824 |
1500 |
130.0 |
60 |
60 |
4.00 |
0.520 |
100 |
0.250 |
短時,2min |
|
90SZ6/H1 |
294 |
3000 |
92.0 |
48 |
48 |
2.90 |
0.490 |
200 |
0.250 |
|
|
90SZ62/H4 |
510 |
3000 |
160.0 |
36 |
36 |
6.70 |
0.620 |
200 |
0.250 |
|
|
90SZ64 |
510 |
1000 |
54.0 |
180 |
200 |
0.48 |
0.140 |
70 |
0.250 |
|
|
90SZ65 |
510 |
1500 |
80.0 |
180 |
200 |
0.68 |
0.140 |
100 |
0.250 |
|
|
90SZ66 |
480 |
2250 |
113.0 |
180 |
200 |
0.90 |
0.140 |
150 |
0.250 |
|
|
90SZ67 |
480 |
3000 |
150.0 |
180 |
200 |
1.25 |
0.140 |
200 |
0.250 |
|
|
90SZ6H7 |
176 |
13000 |
240.0 |
24 |
|
18.00 |
|
|
0.250 |
|
|
90SZ69 |
245 |
6000 |
150.0 |
220 |
220 |
1.10 |
0.130 |
300 |
0.250 |
|
|
90SZ71 |
480 |
3000 |
150.0 |
42 |
42 |
4.90 |
0.630 |
200 |
0.250 |
|
|
90SZ86 |
480 |
3000 |
150.0 |
110 |
110 |
2.00 |
0.230 |
200 |
0.250 |
|
|
型號 |
轉矩 |
轉速 |
功率 |
電壓 |
|
電流(A) |
|
允許順逆 |
轉動慣量 |
附注 |
|
|
|
|
|
電樞 |
激磁 |
電樞 |
激磁 |
|
|
|
|
110SZ01 |
784 |
1500 |
123.0 |
110 |
110 |
1.80 |
0.270 |
100 |
0.560 |
|
|
110SZ02 |
784 |
1500 |
123.0 |
220 |
220 |
0.90 |
0.130 |
100 |
0.560 |
|
|
110SZ03 |
637 |
3000 |
200.0 |
110 |
110 |
2.80 |
0.270 |
200 |
0.560 |
|
|
110SZ04 |
637 |
3000 |
200.0 |
220 |
220 |
1.40 |
0.130 |
200 |
0.560 |
|
|
110SZ07 |
477 |
10000 |
500.0 |
110 |
110 |
7.20 |
0.420 |
500 |
0.560 |
|
|
110SZ10H5 |
686 |
500 |
36.0 |
12 |
12 |
4.80 |
2.500 |
30 |
0.560 |
|
|
110SZ12 |
637 |
3000 |
200.0 |
160 |
190 |
1.80 |
0.140 |
200 |
0.560 |
|
|
110SZ13/H10 |
318 |
6000 |
200.0 |
11 |
0 |
2.8 |
0 |
|
0.560 |
|
|
110SZ14 |
784 |
1000 |
82.0 |
180 |
200 |
0.67 |
0.140 |
70 |
0.560 |
|
|
110SZ15 |
784 |
1500 |
123.0 |
180 |
200 |
0.98 |
0.140 |
100 |
0.560 |
|
|
110SZ16 |
637 |
2250 |
150.0 |
180 |
200 |
1.20 |
0.140 |
150 |
0.560 |
|
|
110SZ51 |
1177 |
1500 |
185.0 |
110 |
110 |
2.50 |
0.320 |
100 |
0.760 |
|
|
110SZ51/H7 |
1177 |
1500 |
185.0 |
110 |
110 |
2.50 |
0.320 |
100 |
0.760 |
|
|
110SZ52 |
1177 |
1500 |
185.0 |
220 |
220 |
1.25 |
0.160 |
100 |
0.760 |
|
|
110SZ52/H8 |
1177 |
1500 |
185.0 |
220 |
220 |
1.25 |
0.160 |
100 |
0.760 |
|
|
110SZ53 |
980 |
3000 |
308.0 |
110 |
110 |
4.00 |
0.320 |
200 |
0.760 |
|
|
110SZ3/H1 |
980 |
3000 |
308.0 |
110 |
110 |
4.00 |
0.320 |
200 |
0.760 |
|
|
110SZ53/H4 |
980 |
3000 |
308.0 |
110 |
110 |
4.00 |
0.320 |
200 |
0.760 |
|
|
110SZ53/H6 |
980 |
3000 |
308.0 |
110 |
110 |
4.00 |
0.320 |
200 |
0.760 |
|
|
110SZ54 |
980 |
3000 |
308.0 |
220 |
220 |
2.00 |
0.160 |
200 |
0.760 |
|
|
110SZ55 |
980 |
3000 |
308.0 |
24 |
24 |
16.50 |
1.300 |
200 |
0.760 |
|
|
110S5/H11 |
980 |
3000 |
308.0 |
24 |
24 |
16.50 |
1.300 |
200 |
0.760 |
|
|
110SZ56 |
1177 |
1000 |
123.0 |
110 |
110 |
1.70 |
0.320 |
100 |
0.760 |
|
|
110SZ56/H3 |
1177 |
1000 |
123.0 |
110 |
110 |
1.70 |
0.320 |
100 |
0.760 |
|
|
110SZ57 |
824 |
1450 |
125.0 |
54 |
54 |
3.24 |
0.540 |
|
0.760 |
|
|
110SZ58 |
824 |
2000 |
172.0 |
54 |
54 |
4.50 |
0.540 |
|
0.760 |
|
|
110SZ59 |
1274 |
3000 |
400.0 |
96 |
96 |
5.50 |
0.270 |
200 |
0.760 |
|
|
110SZ59/H2 |
1274 |
3000 |
400.0 |
96 |
96 |
5.50 |
0.270 |
200 |
0.760 |
|
|
110SZ60 |
980 |
3000 |
308.0 |
110 |
110 |
4.00 |
0.320 |
200 |
0.760 |
|
|
110SZ61 |
843 |
1700 |
150.0 |
12 |
12 |
17.00 |
2.100 |
120 |
0.760 |
|
|
110SZ62 |
980 |
3000 |
308.0 |
220 |
220 |
1.80 |
0.130 |
200 |
0.760 |
|
|
110SZ/H12 |
573 |
3000 |
180.0 |
48 |
48 |
5.40 |
0.660 |
200 |
0.760 |
|
|
110SZ64 |
1177 |
1500 |
185.0 |
180 |
200 |
1.32 |
0.180 |
100 |
0.760 |
|
|
110SZ65 |
980 |
2250 |
230.0 |
180 |
200 |
1.65 |
0.180 |
150 |
0.760 |
|
|
110SZ66 |
980 |
3000 |
308.0 |
180 |
200 |
2.15 |
0.180 |
200 |
0.760 |
|
|
110SZ67 |
1177 |
1000 |
123.0 |
180 |
200 |
0.85 |
0.180 |
100 |
0.760 |
|
|
型號 |
轉矩 |
轉速 |
功率 |
電壓 |
|
電流(A) |
|
允許順逆 |
轉動慣量 |
|
|
|
|
|
電樞 |
激磁 |
電樞 |
激磁 |
|
|
|
130SZ01 |
2256 |
1500 |
355.0 |
110 |
110 |
4.40 |
0.280 |
100 |
1.960 |
|
130SZ02 |
2256 |
1500 |
355.0 |
220 |
220 |
2.20 |
0.180 |
100 |
1.960 |
|
130SZ02/H6 |
2256 |
1500 |
355.0 |
220 |
220 |
2.20 |
0.180 |
100 |
1.960 |
|
130SZ02/H7 |
2256 |
1500 |
355.0 |
220 |
220 |
2.20 |
0.180 |
100 |
1.960 |
|
130SZ03 |
1912 |
3000 |
600.0 |
110 |
110 |
7.60 |
0.280 |
200 |
1.960 |
|
130SZ3/H1 |
1912 |
3000 |
600.0 |
110 |
110 |
7.60 |
0.280 |
200 |
1.960 |
|
130SZ3M/H5 |
1912 |
3000 |
600.0 |
110 |
110 |
7.60 |
0.280 |
200 |
1.960 |
|
130SZ04 |
1912 |
3000 |
600.0 |
220 |
220 |
3.80 |
0.180 |
200 |
1.960 |
|
130SZ04/H8 |
1912 |
3000 |
600.0 |
220 |
220 |
3.80 |
0.180 |
200 |
1.960 |
|
130SZ06 |
2256 |
750 |
177.0 |
110 |
110 |
2.30 |
0.280 |
75 |
1.960 |
|
130SZOM/H1 |
1593 |
1500 |
250.0 |
220 |
220 |
1.60 |
0.160 |
100 |
1.960 |
|
130SZO8M/H1 |
1593 |
1500 |
250.0 |
180 |
180 |
1.80 |
0.280 |
100 |
1.960 |
|
130SZ09/H3 |
1912 |
2000 |
400.0 |
24 |
24 |
24.00 |
0.820 |
130 |
1.960 |
|
130SZ11 |
2256 |
1500 |
355.0 |
180 |
180 |
3.00 |
0.140 |
100 |
1.960 |
|
130SZ12 |
1912 |
3000 |
600.0 |
180 |
180 |
5.00 |
0.140 |
200 |
1.960 |
|
130SZ13C |
1912 |
2500 |
500.0 |
160 |
|
5.00 |
|
150 |
1.960 |
|
130SZ14C |
1912 |
1500 |
300.0 |
180 |
|
2.50 |
|
|
1.960 |
康總：13906433268
電話：0533-4681136 傳真：0533-4680075
E-mail：sdhuikang@163.com
